Drilling the deepest holes on Earth

Beneath our feet is an almost limitless source of energy, but while a few lucky locations have geothermal heat close to the surface, the rest of the world will need to dig a lot deeper. The challenge is how to get deep enough.

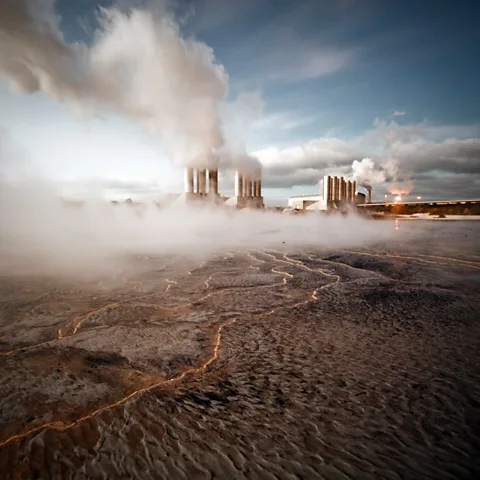

There are some spots around the world where energy literally bubbles to the surface. In Iceland, home to more than 200 volcanoes and dozens of natural hot springs, tapping into this energy isn’t hard. Dotted around the country are steaming pools of water, heated by the geothermal fires that burn just below the crust. Boiling jets of water and steam are thrown into the air by geysers.

Iceland now heats 85% of its houses with this geothermal energy, while 25% of the country’s electricity also comes from power stations that harness this heat from underground. It’s an appealing prospect – an almost limitless supply of energy waiting to be tapped.

But geothermal energy offers an essentially inexhaustible green energy source across the planet. And it’s “always on”, unlike wind or solar power, since the heat is continually emitted from the Earth’s molten core and the decay of naturally occurring radioactive elements in our planet’s crust. Indeed, the Earth emits such enormous amounts of energy as it cools that the heat lost into space each year is enough to meet the world’s total energy demands many times over.

The challenge is tapping into that energy.

Currently only 32 countries in the world have geothermal power plants in operation. There are fewer than 700 power plants around the world, generating around 97 Terawatt hours (TWh) in 2023 between them. That is less than half the amount of electricity generated by solar in the US alone and far short of estimates for the potential contribution that geothermal could make to the global energy mix. Some estimate that geothermal could contribute around 800–1400TWh of electricity annually by the middle of the century with a further 3,300-3800TWh per year of heat.

“The Earth itself has the potential to address a variety of hurdles in the transition to a clean energy future,” argued Amanda Kolker, geothermal programme manager at the National Renewable Energy Laboratory (NREL) in the US, when releasing a report on the potential of geothermal energy in 2023.

One reason geothermal is not more widespread is the high upfront investment needed to extract that energy. But physically reaching it has also been beyond us so far.

For other parts of the world to enjoy a part of this geothermal bonanza of clean energy, we need to drill deeper to reach the temperatures needed to generate electricity or provide large-scale heating for nearby neighbourhoods.

Drill down far enough, though and it is possible to reach a point where water temperatures surpass 374C (705F) at pressures above 220 bars (one bar being average pressure on the Earth’s surface at sea level). This is where water enters an energy-intense state known as supercritical, where it exists in a form that is neither liquid or gas. The hotter and more pressurised it is, the greater energy it contains.

In fact, a single superhot geothermal well could produce five to 10 times the energy that commercial geothermal wells produce today, according to the NREL.

The deepest hole ever dug by humans dates back to the Cold War, however, when there was a race between the superpowers to drill as far into the Earth’s crust as possible. The Soviets managed to plough their way through 7.6 miles (12.2km) of rock – creating the Kola Superdeep Borehole, on the Kola Peninsula, high in the Arctic Circle. It took them almost 20 years to reach that depth and it remains the deepest humans have managed to delve into the Earth. (Read more about the Kola Superdeep Borehole in this article by Mark Piesing.)

The NREL estimates that the cost of drilling a 1km deep well is around $2m (£1.57m) while drilling four times that depth can cost between $6m-$10m (£4.7m to £7.87m) with current technology.

With this in mind, some pioneering researchers and companies are turning to new types of drills and drilling techniques to bore some of the deepest holes ever created in the hope of bringing geothermal energy to parts of the world that never thought it was possible.

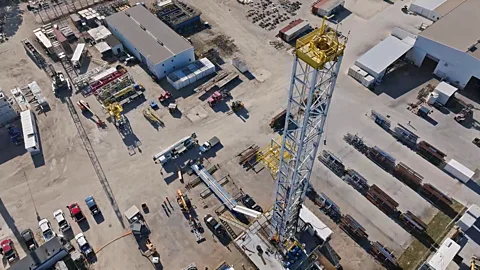

Quaise Energy, a spin-off from the Massachusetts Institute of Technology (MIT), for example, are aiming to drill holes as deep as 12 miles (20km) to access temperatures of 500C (932F) or more. To do so, they are turning to a tool that draws on years of research into nuclear fusion power. “While others are putting shovels in the ground, we’re putting microwaves in the ground for the first time,” says the company’s co-founder Matt Houde.

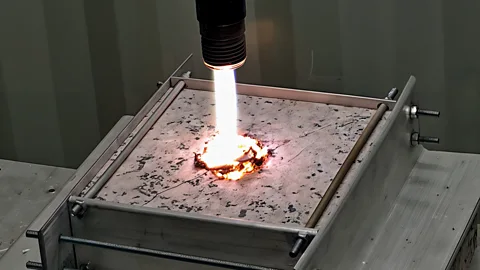

He and his colleagues are experimenting with millimetre-wave directed energy beams that vaporise even the hardest rock. It focuses high-powered beam of radiation similar to microwaves but at a higher frequency onto a segment of rock, heating it up to 3,000C (5,432F) so that it melts and vaporises. By directing the beam so it bores through the rock, holes can be created without the debris and friction created by traditional drilling techniques.

“Millimetre-wave drilling is a process that can operate largely independent of depth,” says Houde. “And millimetre-wave energy can also transmit through dirty, dusty environments.”

The technology has grown out of nuclear fusion plasma experiments conducted by Paul Woskov, an engineer at MIT’s Plasma Science and Fusion Centre. Millimetre-wave directed energy has been explored as a way of heating up plasma in nuclear fusion reactors since the 1970s, but a few years ago Woskov hit upon another use for the technology. He started using millimetre-wave beams generated by a device known as a gyrotron to melt through rock.

But so far the technology has only been tested in the laboratory, drilling shallow holes in relatively small samples of rock, but the company claims it can drill through rock at around 3.5m (11.5ft) per hour. While this is slow compared to traditional drilling techniques, there are other benefits as the “drill bit” isn’t physically grinding through the rock, it should not wear out or need replacing. Quaise Energy are now at the final stage of laboratory testing of millimetre-wave technology prior to beginning field trials in early 2025.

But transferring the millimetre-wave drilling technology from the laboratory to a full-scale drilling operation will still be a challenge.

“They have never been used before in the deep high-pressure subsurface environment,” says Woskow. “Changes due to intense energy-matter interaction applied to drilling require a new learning curve.”

Slovakia-based GA Drilling, meanwhile, is exploring a different high-energy drill technology to bore into the Earth’s crust. It is using a pulse plasma drill, based on very short high energy electric discharges that disintegrate rock without causing it to melt. This avoids creating any viscous molten rock, which can be difficult to remove and can stop drill bits penetrating further. “Since the process is very swift with short shocks crumbling the rock, there isn’t time for melt to form – so the need to pull up and replace the bit is greatly reduced,” says Igor Kocis, chief executive and chairman of GA Drilling. “Five to eight kilometres (3-5 miles) is a target for our current development programme – and later 10km-plus,” he adds. “These depths will allow nearly universal access to geothermal power.”

GA Drilling has also been collaborated with Konstantina Vogiatzaki, associate professor of engineering science at the University of Oxford to adapt advanced mathematics looking at how  supercritical fluids can be controlled when tapping deep earth energy sources accessed via plasma drilling. “We worked on defining the optimum combustion system for a full-scale drilling tool, opening new horizons in controlling ultra-high pressure combustion through plasma drilling,” says Vogiatzaki.

For its own part, the NREL has turned to AI to analyse complex subterranean environments to try to find the best places to drill for supercritical water, as well as helping to predict and detect faults with drills before they cause major issues.

And some companies are already making inroads into the deep Earth. Geothermal company Eavor told the BBC that in 2024 it reached a depth of three miles (5km) with two vertical wells at a site in Gerestried, Bavaria, Germany. It has been using two of the largest land-based drilling rigs in Europe in an effort to create a commercial-scale plant in Geretsried that aims to bring geothermal heat to the surface by circulating water inside a closed loop design it calls the Eavor Loop. The system works like a giant radiator, with cold water in the loop being heated underground and then coming back to the surface where it will be used to generate electricity and piped into nearby homes through a district heating system. Eavor expectes to begin generating energy at the site in the first half of 2025, says John Redfern, Eavor’s CEO and president.

“Our technology is looking to drill up to 11km (6.8 miles) in the future,” says geologist and Eavor co-founder Jeanine Vany. “I believe we can make meaningful progress towards unlocking superhot rock in the next three to five years.”

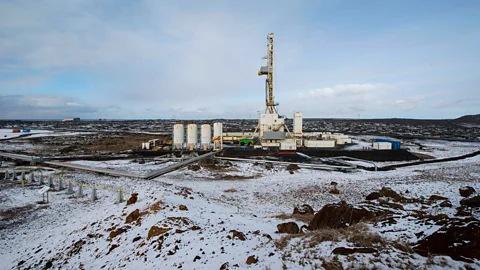

Their closed-loop approach also helps to avoid some of the contamination problems that can occur when superheated water is extracted from deep geothermal wells – as the Iceland Deep Drilling Project discovered in 2009. It can also help to reduce the emissions of hazardous gases, such as hydrogen sulphide, that open-loop geothermal systems can emit.

Vany also points out that deep geothermal energy doesn’t need a lot of space on the surface, which means it could be slotted into urban locations in the future.

There would be a certain poetry in that switch – a power station that once ran on a dirty fuel dug out of the ground finding new life in the clean energy revolution with an energy source from even deeper underground.

The question is – will they be able to dig deep enough?

* An earlier verison of this article stated the Quaise Energy had hoped to convert an old coal power plant into a geothermal plant. The BBC would like to clarify that this was an idea put forward by Paul Woskov and is not something Quaise Energy are currently working on.
